15 Inch Asian Wood Planer

Created: June 13, 2018
Last Revised: October 23, 2023


French Creek Valley Home                    Back to My Woodshop

Blacksmithing                    Contact Us

Operator's Manual for 15" Asian Planer

Here are links to the 16 pages of the operator's manual that came with the machine that I bought new, back in about 1986.
It has worked out pretty well for me.
Sorry, but I am not very good at pdf files, and besides. I wanted to make sure that the images are stored with the highest possible resolution:
Cover

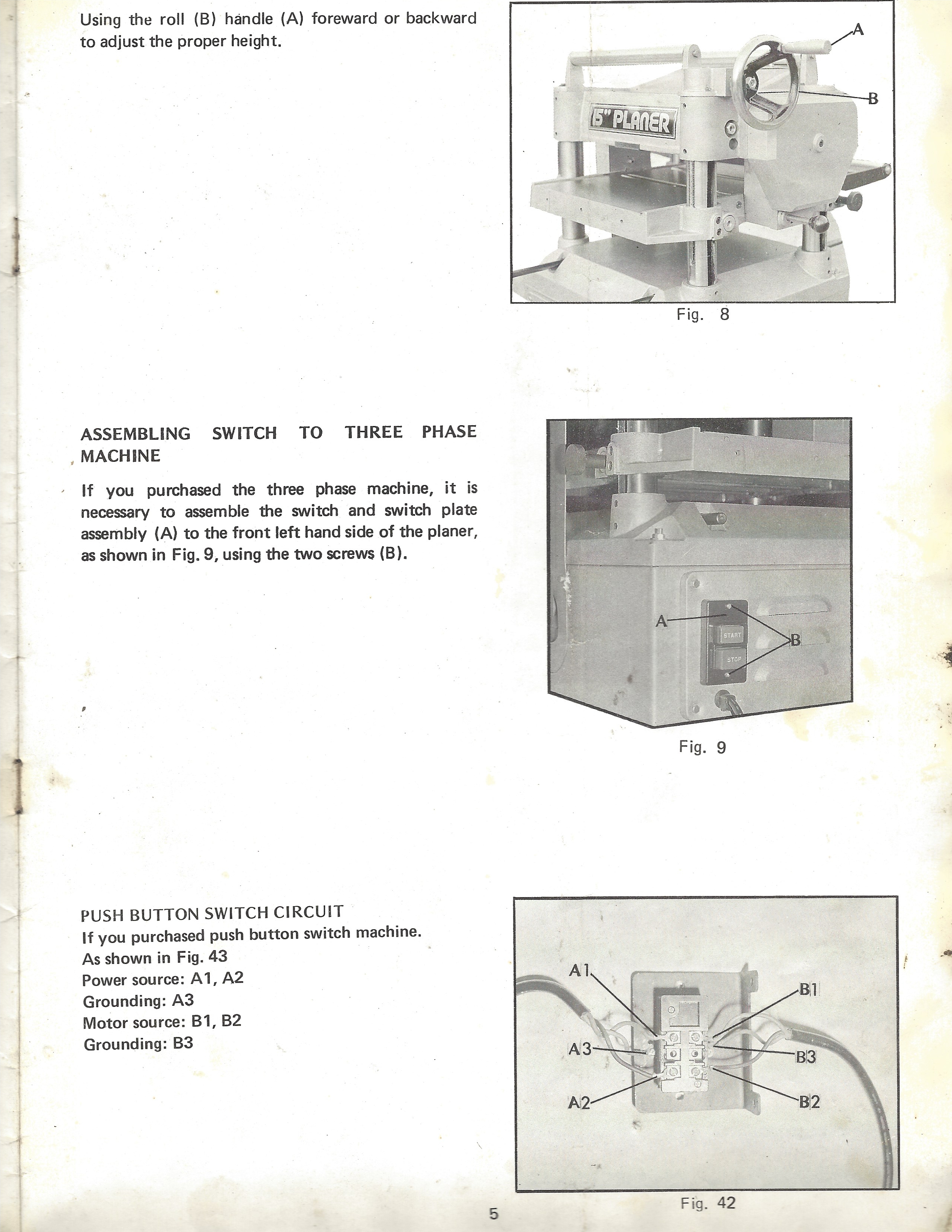

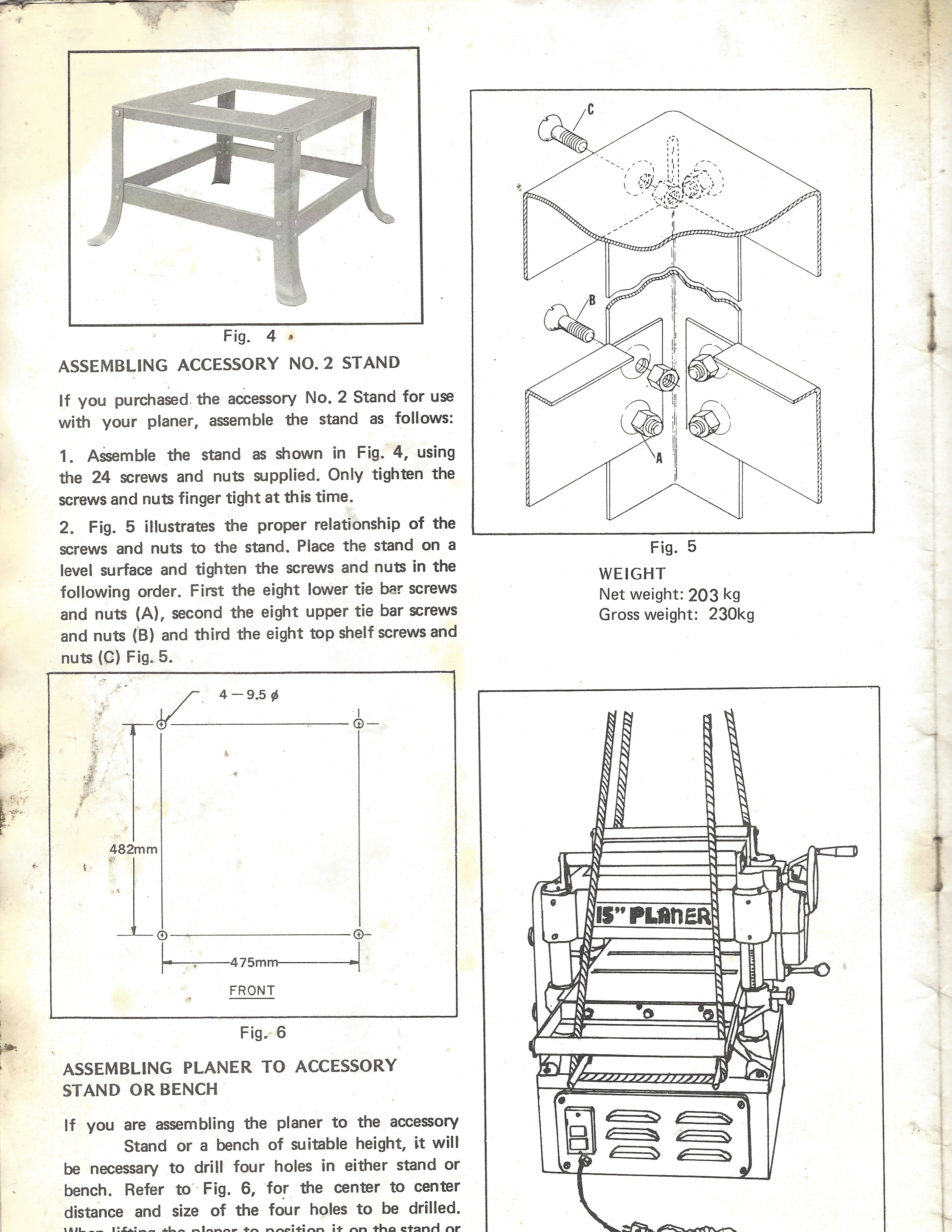

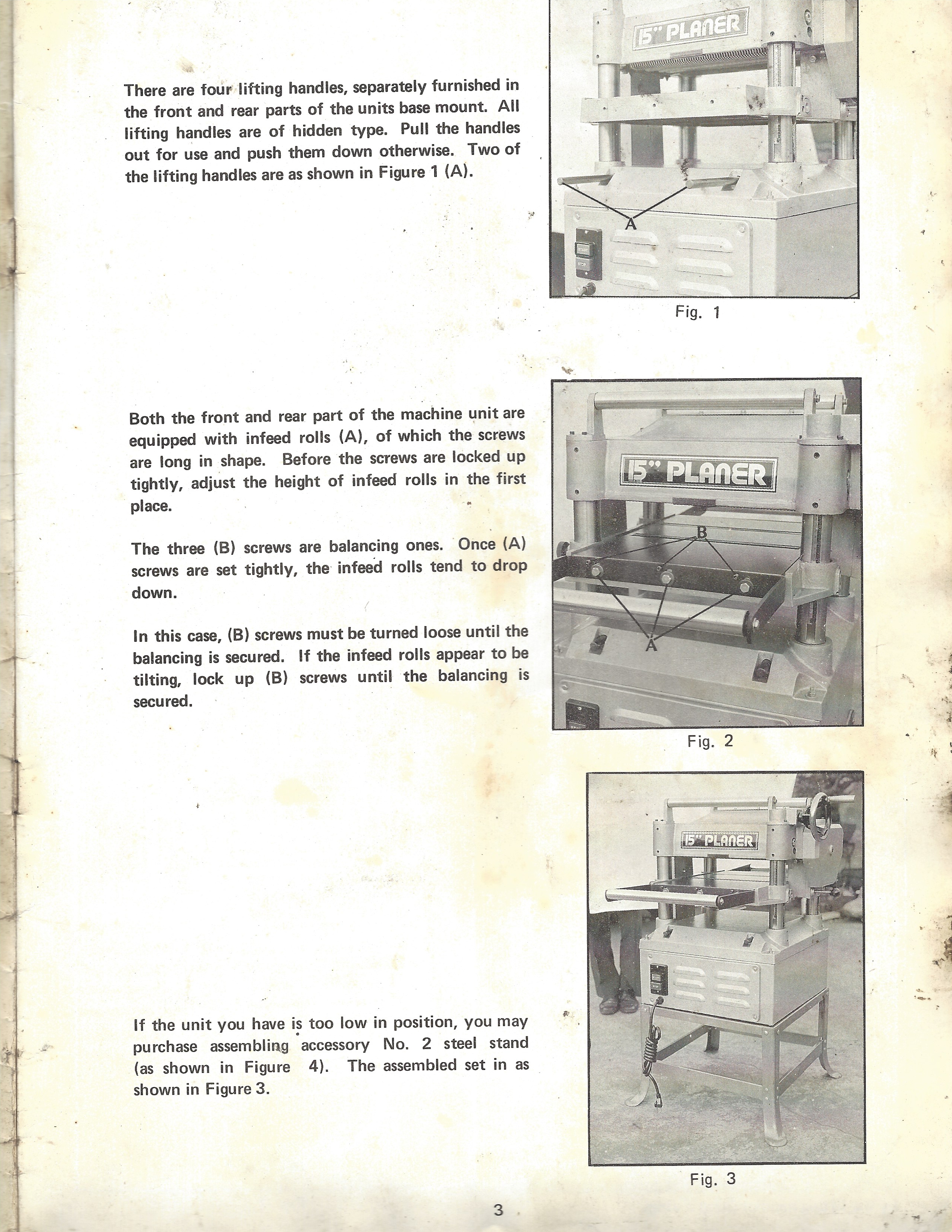

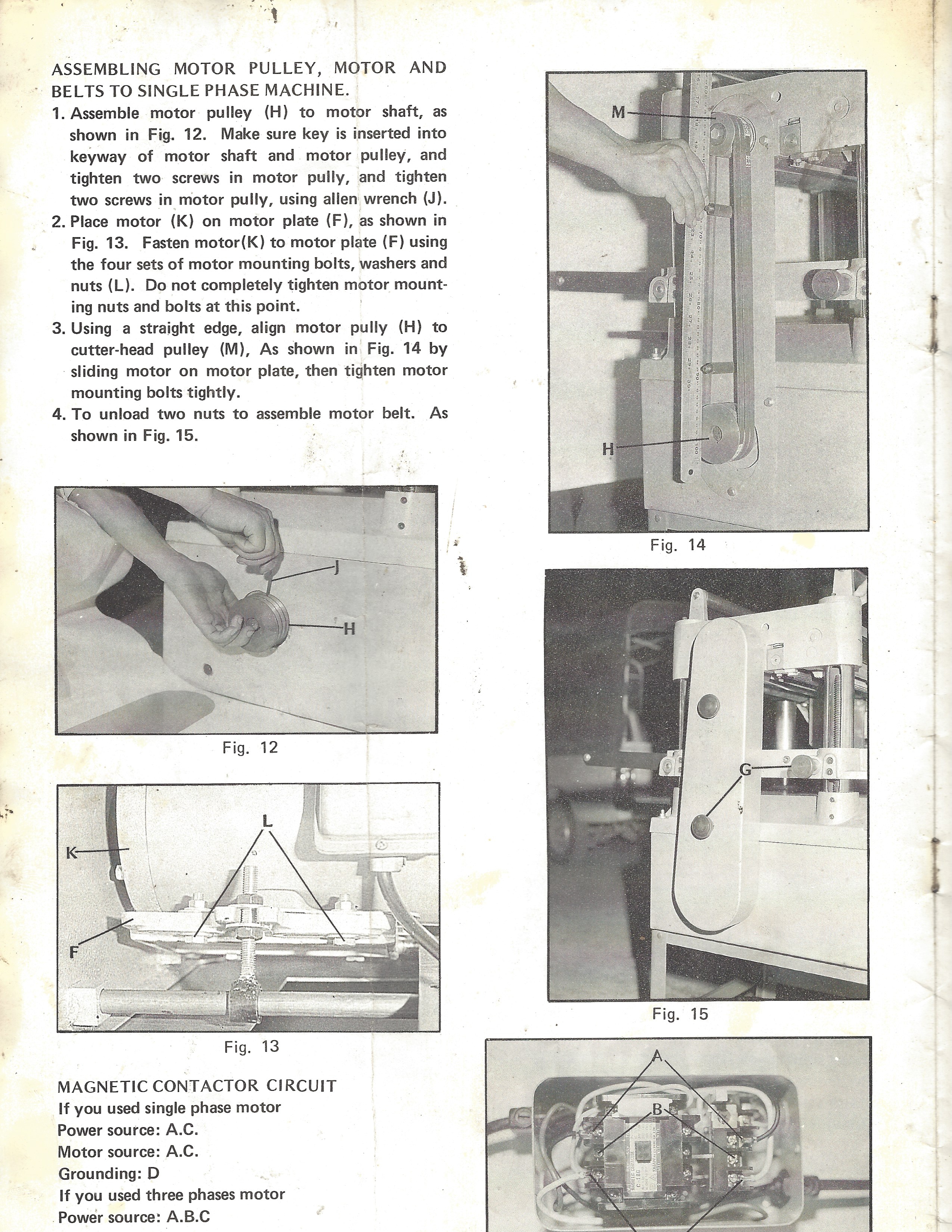

Setup
Setup
Setup
Setup

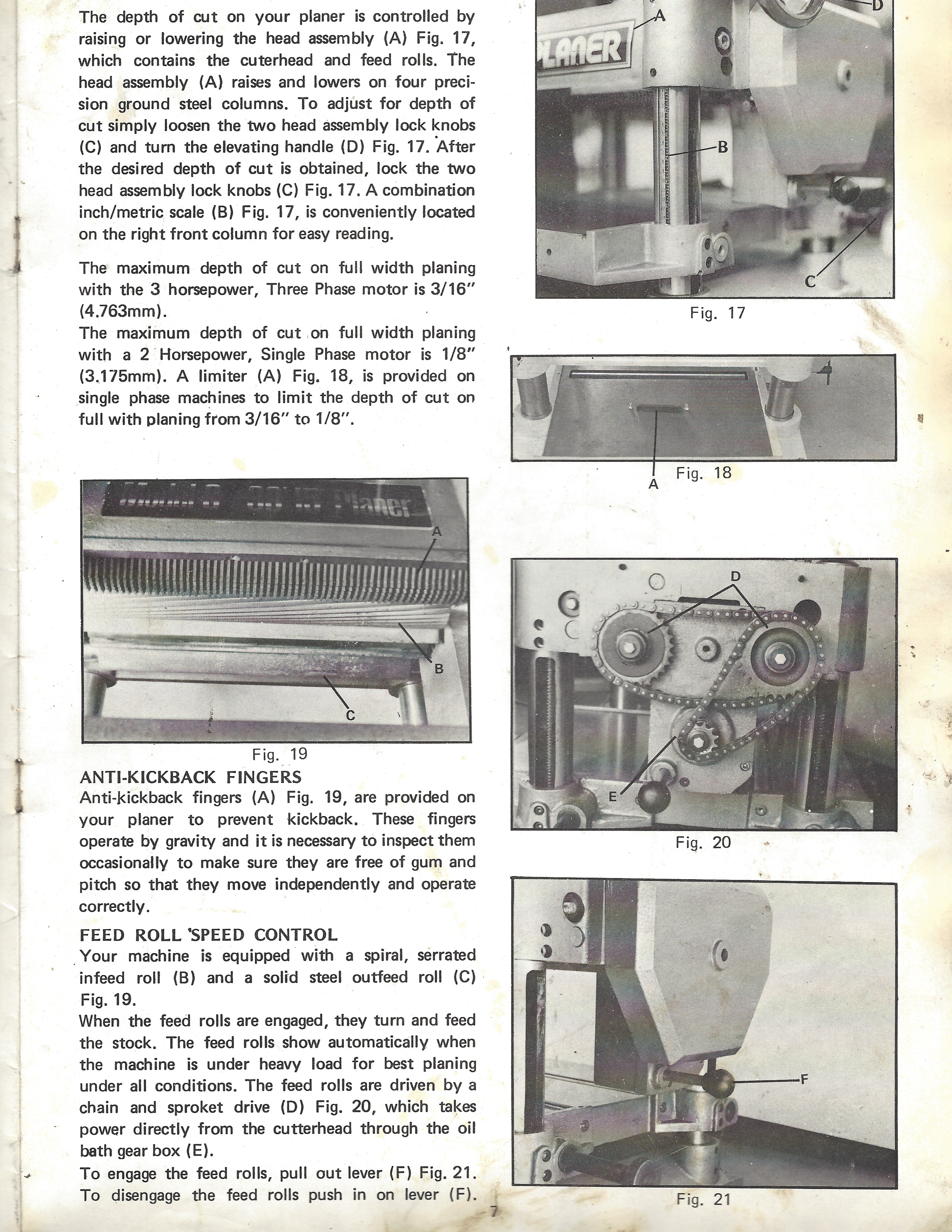

Page 7 Depth of Cut, Anti-Kickback Fingers, Feed Roll Speed Control

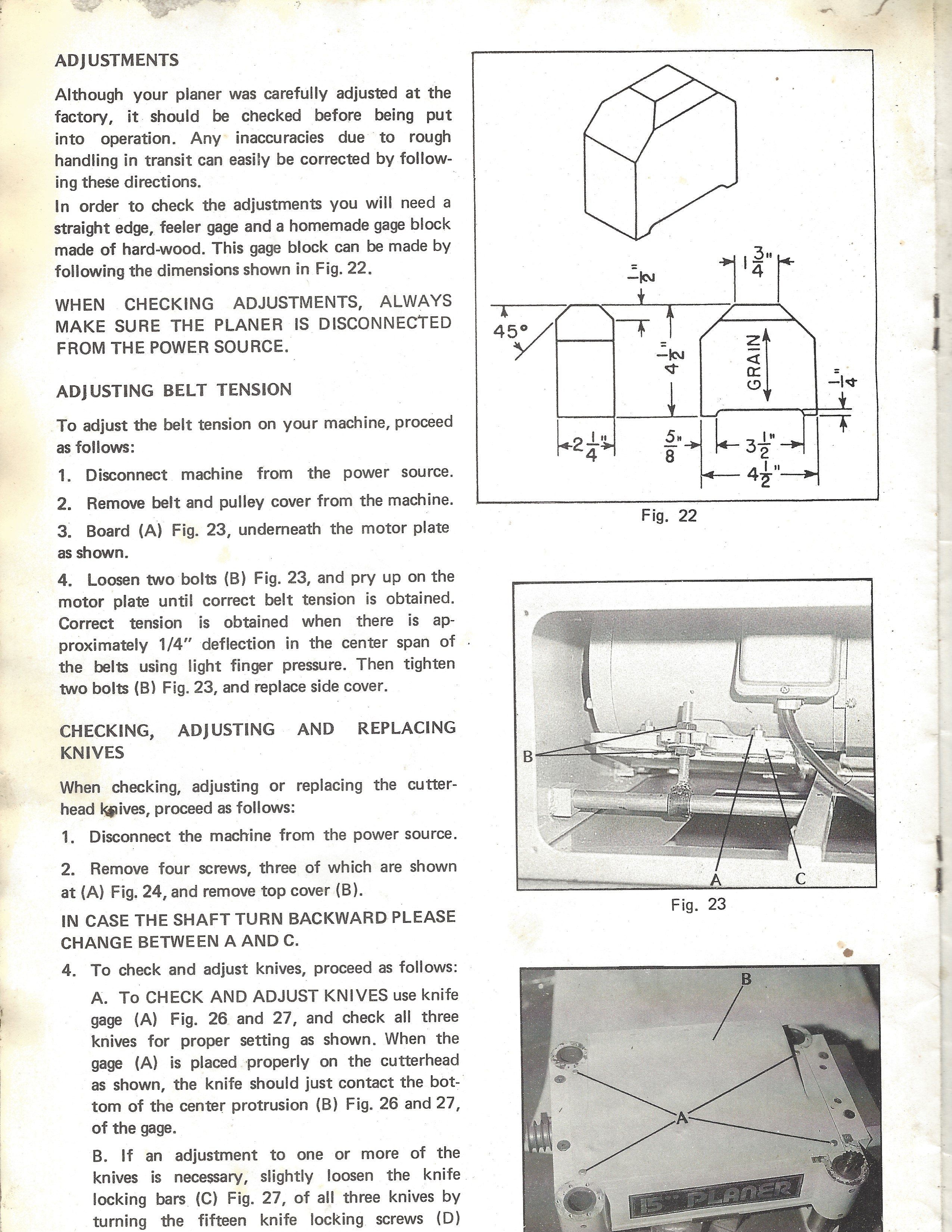

Page 8 Adjustments, Adjusting Belt Tension, Knives

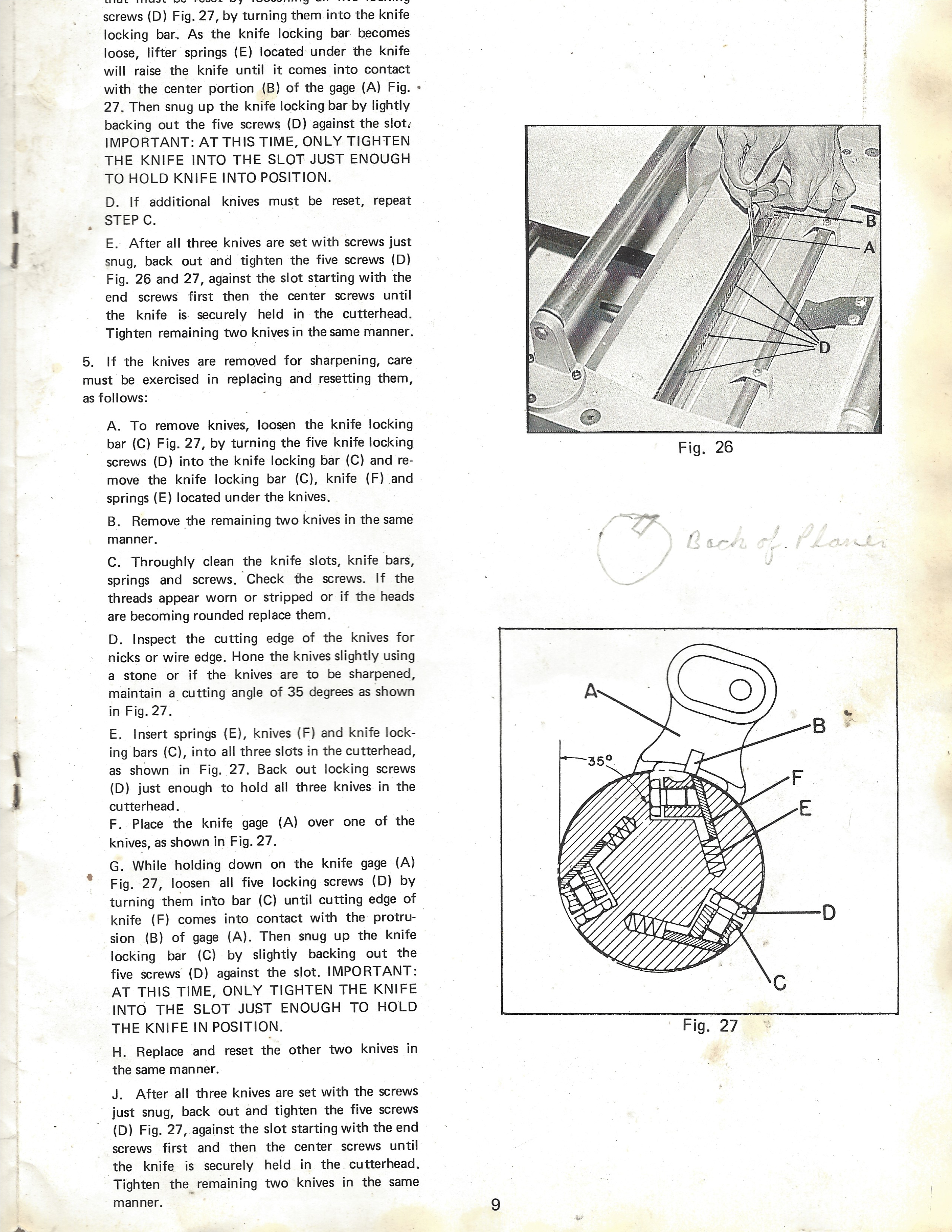

Page 9 Knives, Con't

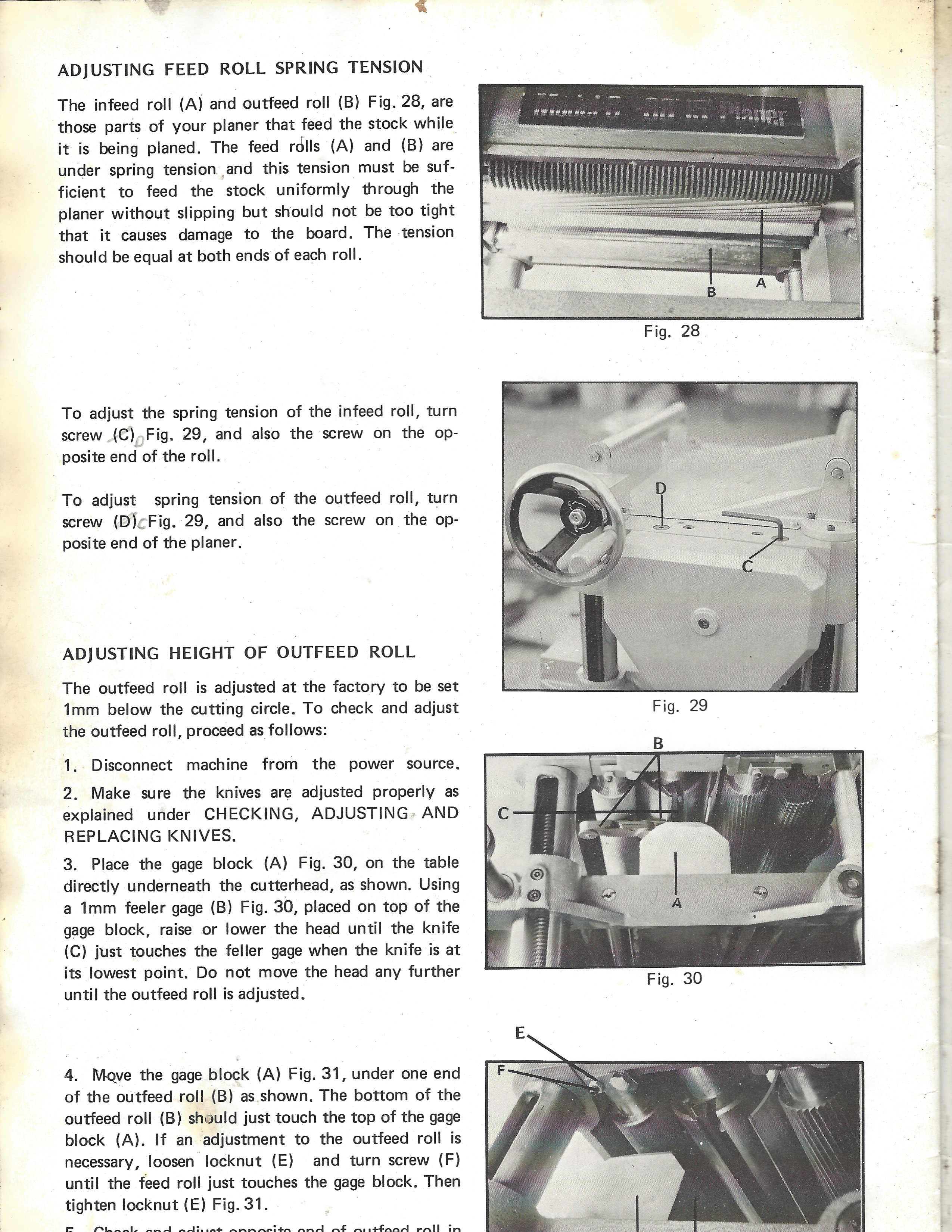

Page 10 Adjusting: Feed Roll Spring Tension, Height of Outfeed Roll

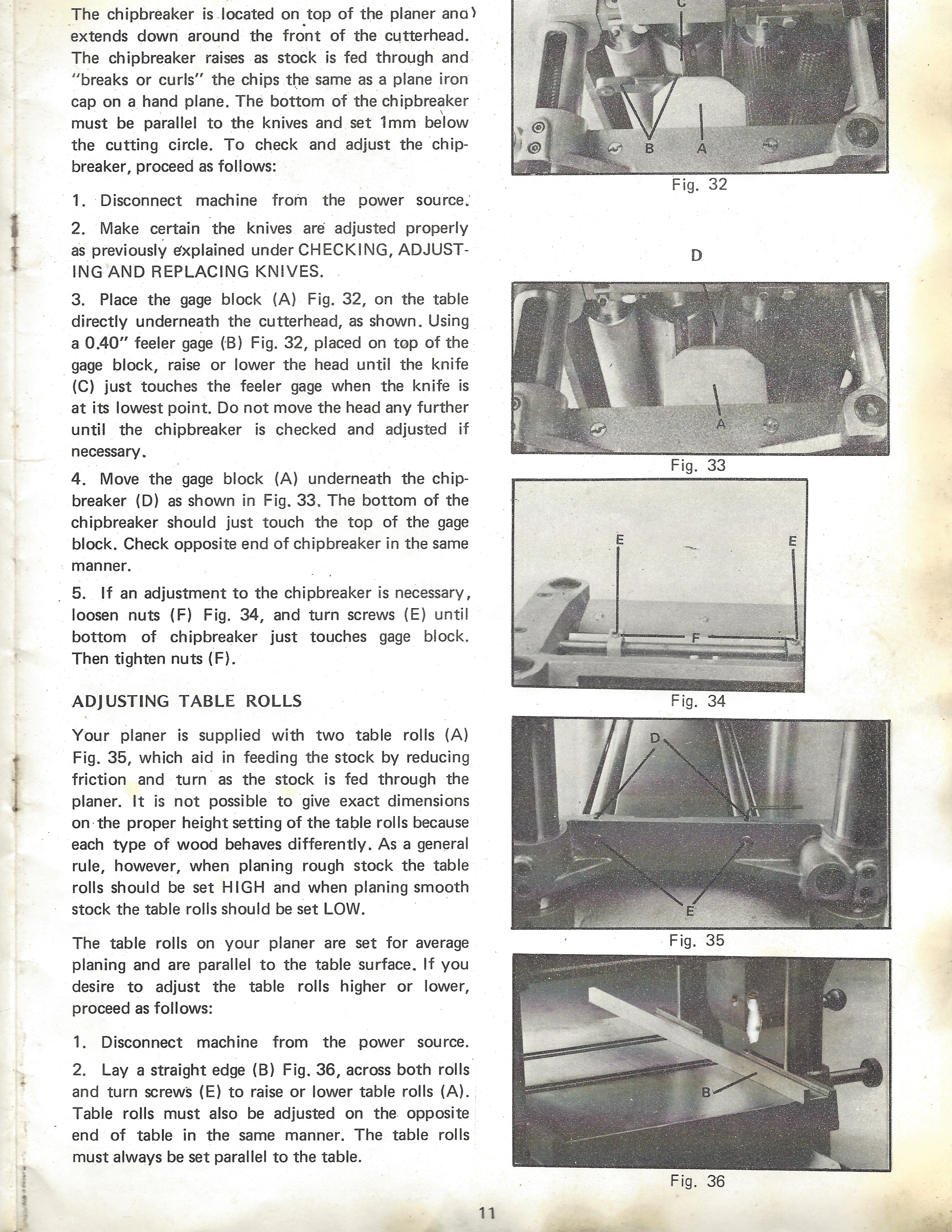

Page 11 Adjusting Chipbreaker and Table Rolls

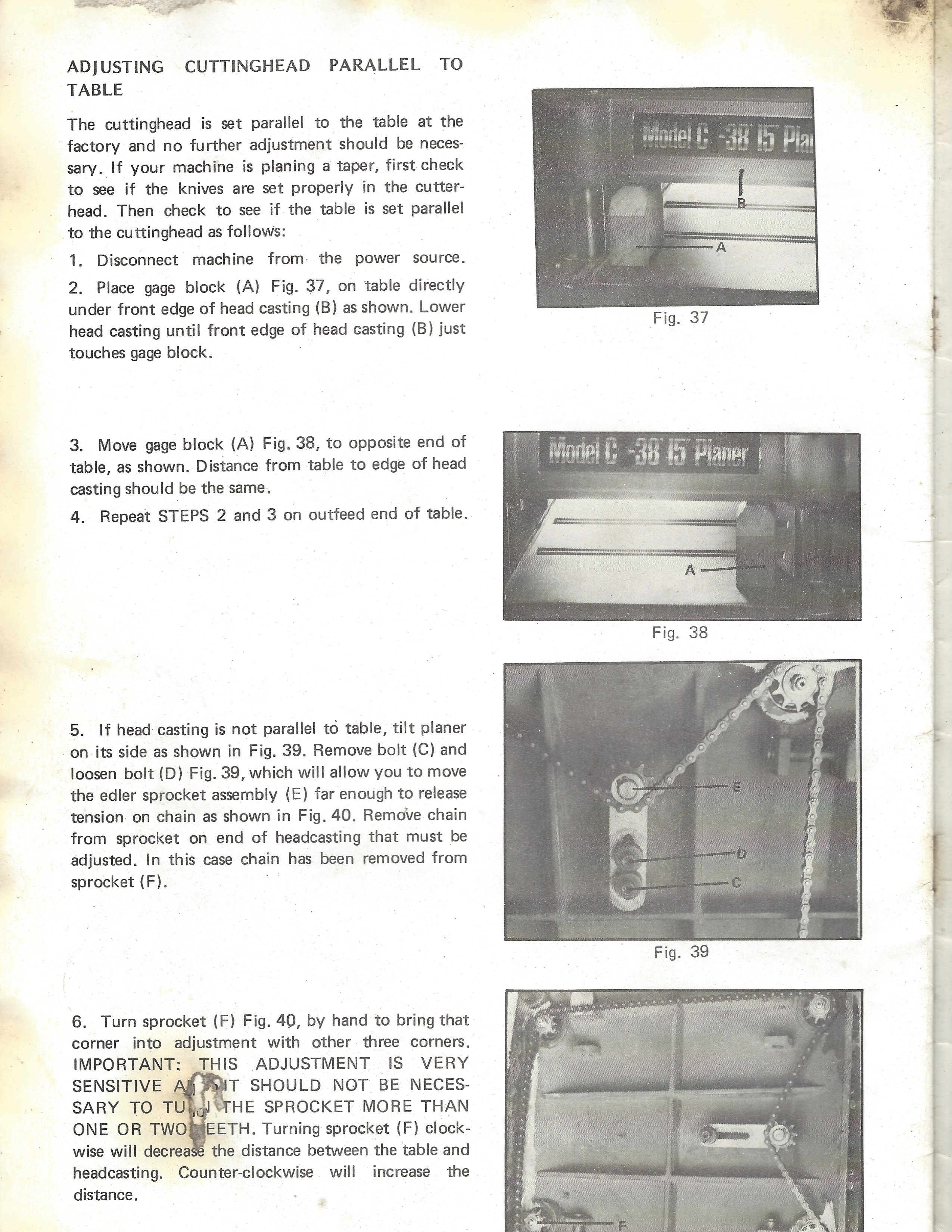

Page 12 Adjusting Cutter Head Parallel to Table

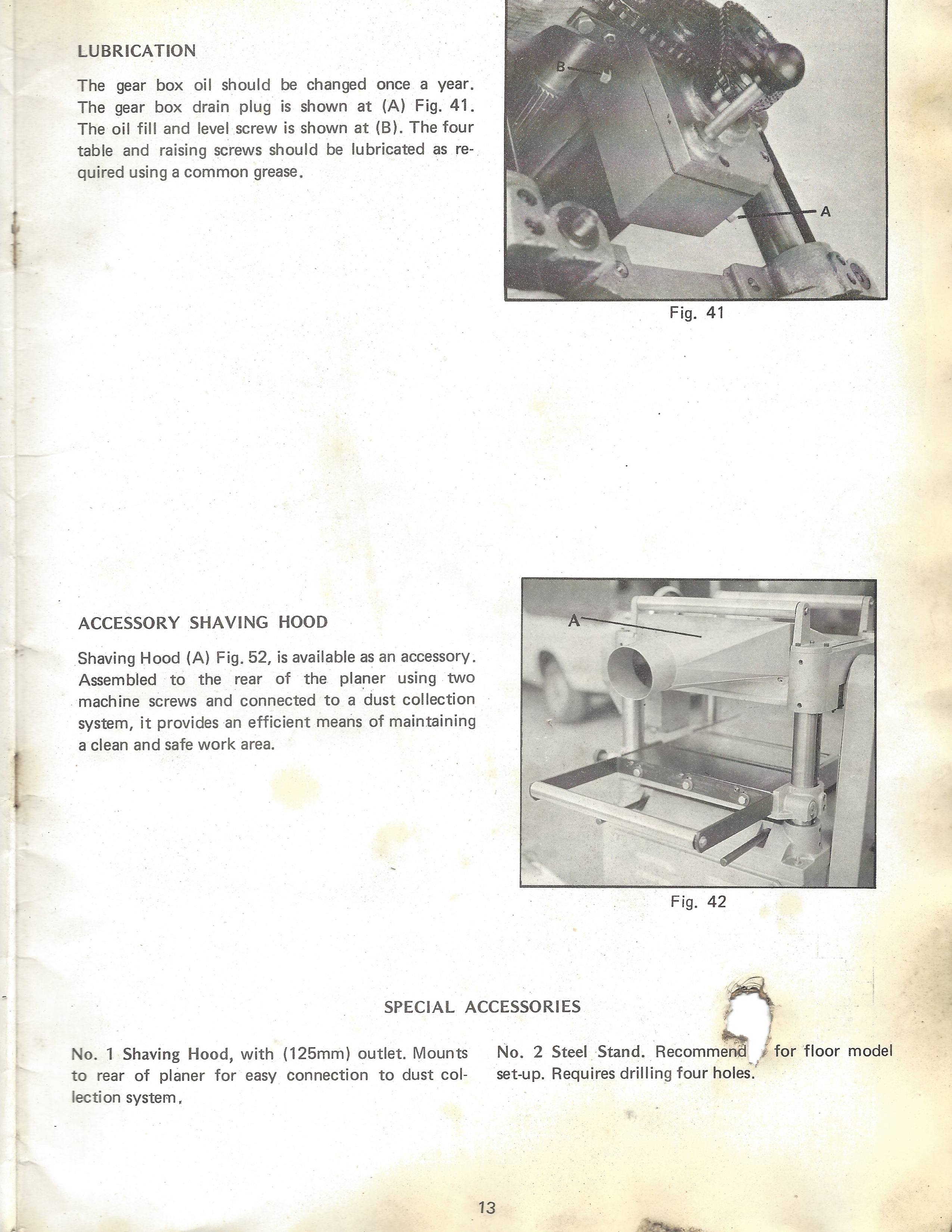

Page 13 Lubrication, Accessory Shaving Hood, Special Accessories

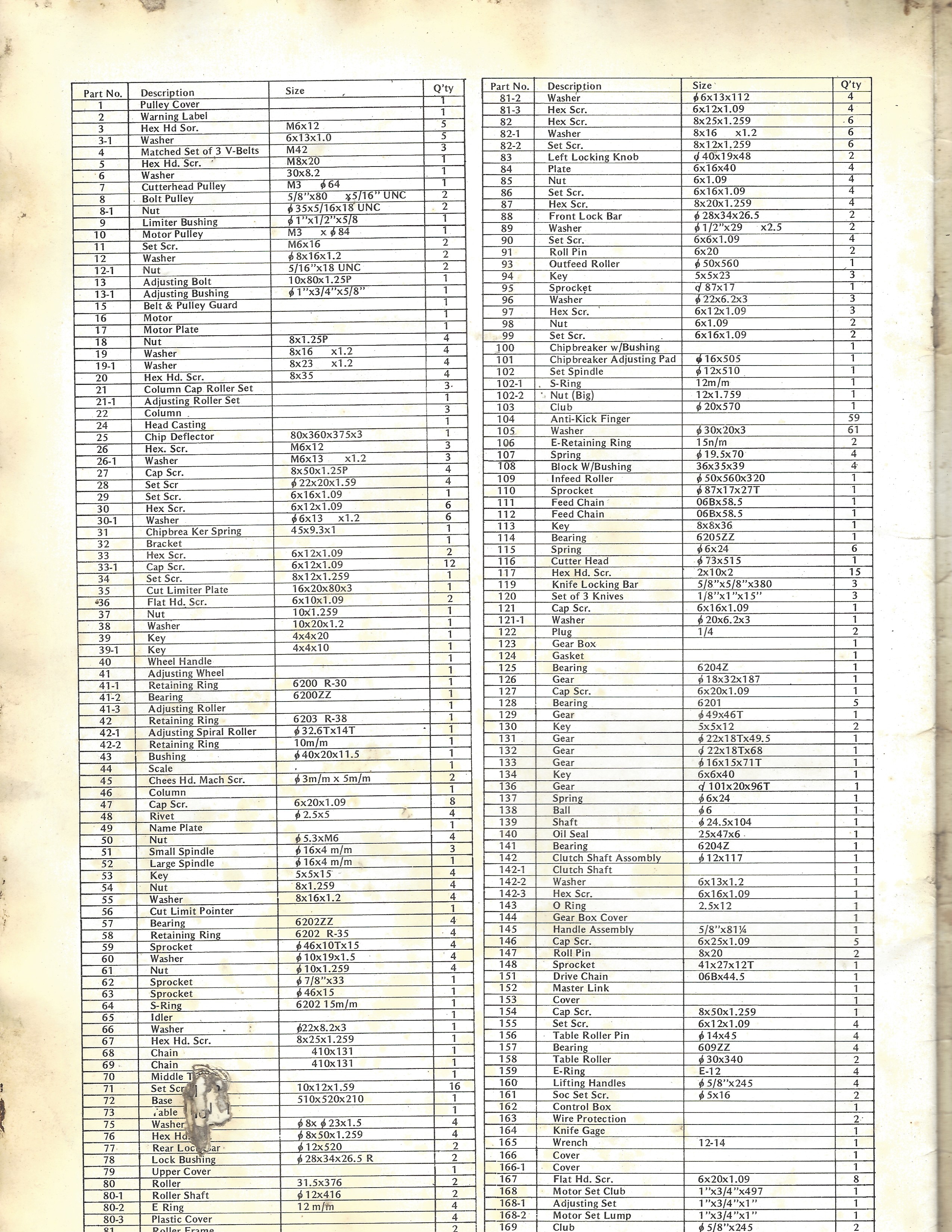

Page 14 Parts List

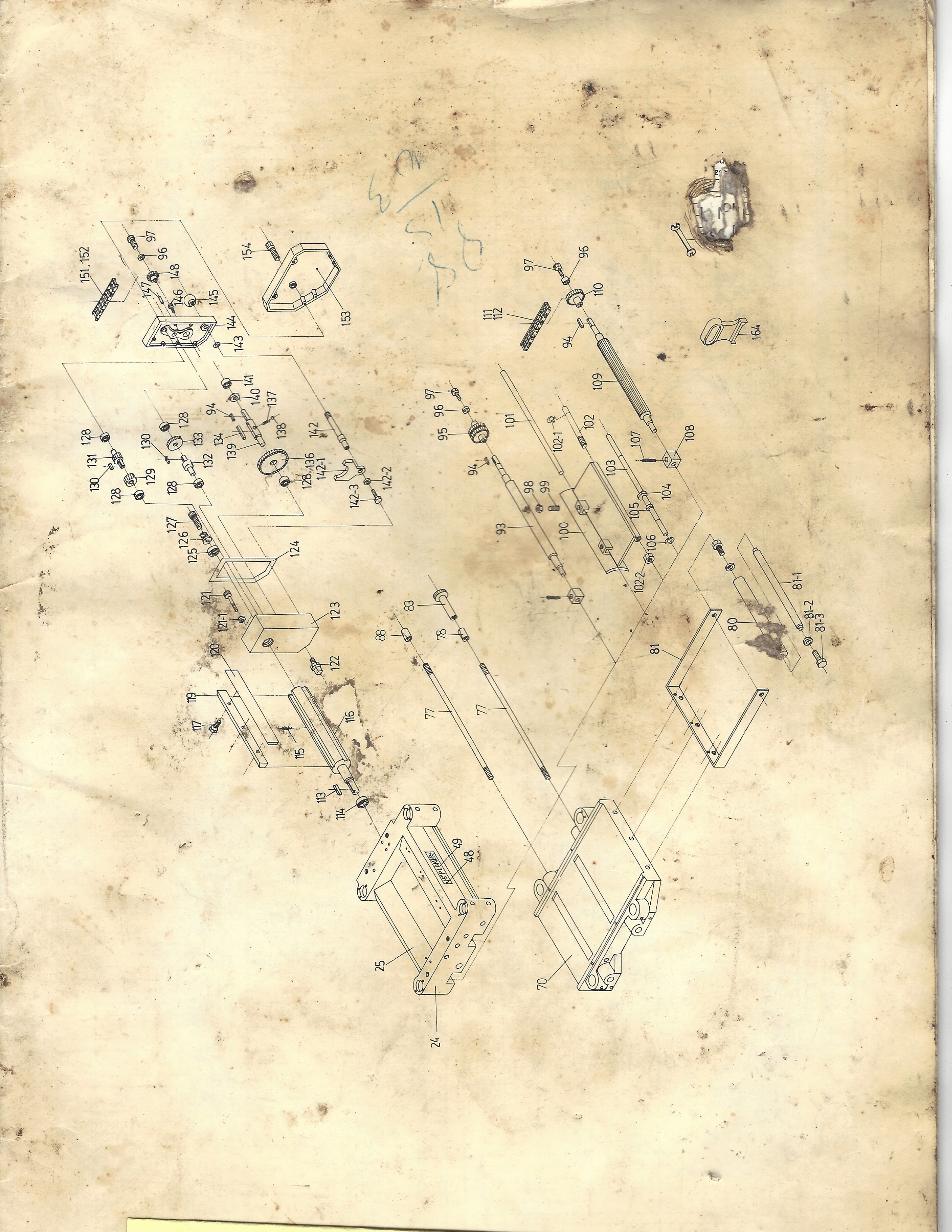

Page 15 Exploded View of Planer Parts

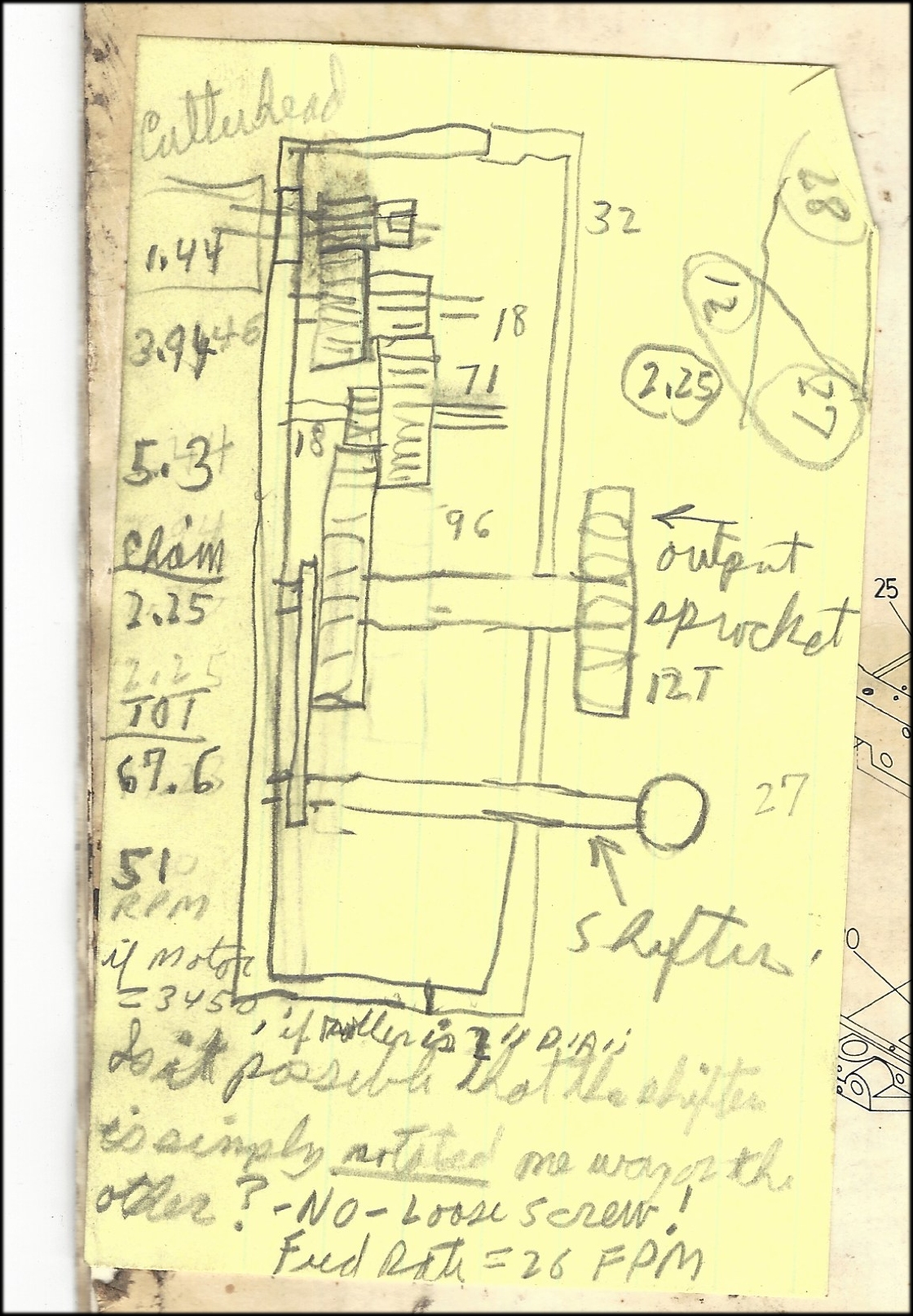

Gearbox drawing by Pete, for troubleshooting
